13.75 - 14.5 GHz 40 Watt GaN Power Amplifier: QPA1314
QPA1314 is a high-power GaN MMIC amplifier for Satcom applications. The amplifier is packaged for easy integration and is ideal for both commercial and military markets.
Fabricated on Qorvo's proprietary 0.15 um GaN on SiC process, the QPA1314 delivers exceptional performance and reliability.
The amplifier offers a linear power output of 20W with low intermodulation distortion (IMD), ensuring high-quality signal transmission. For applications demanding higher power levels, the QPA1314 can deliver up to 40W of output power with a large signal gain of 27 dB. Additionally, it achieves a power-added efficiency (PAE) of 30%, making it an energy-efficient solution.

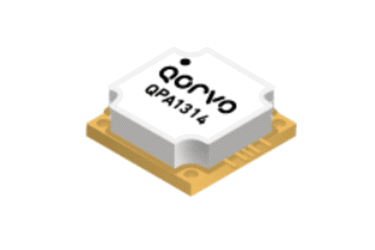

The QPA1314 is packaged in a 10-lead, bolt-down package with a copper base for superior thermal management. Its 50-ohm input and output impedance and DC-grounded I/O ports simplify system integration and provide optimal electrostatic discharge (ESD) protection.
The QPA1314 is a versatile amplifier that can support various communications and radar systems. It is 100% DC and RF tested to ensure compliance with electrical specifications and is RoHS and lead-free compliant.
